TBM Potentiomter and joy stick










































Electrical characteristics and Application notes



Standard resistance value 500, 1K, 5K, 10K, 50K, 100K, 500K, 1M, 2M
Resistance tolerance
500 ohms to 2M ohms - +-20%
over 2M ohms - +-30%

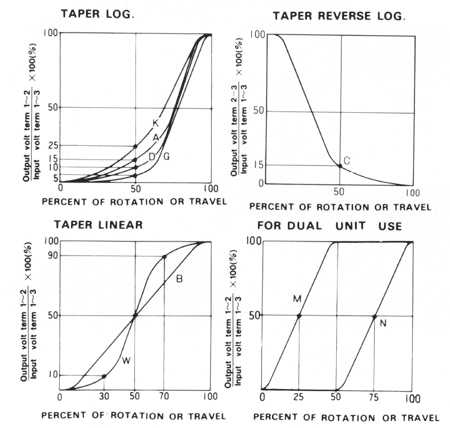

Resistance taper
Residual resistance
 Ask us.
Switch contact resistance Less than 50m ohms
Rotational (sliding) life
 15,000 cycles for normal, 300,000 cycles for long life type
Switch endurance The contact resitance after 5,000 cycles is less than 0.2 ohm
Rotational (sliding) noise
 Less than 47mV at DC 20V (except 103-N and 103-S2)
Less than 68mV for 103-N and 103-S2
Matching tolerance
 Tone control - Use +- 3dB at 50% rotation
Volume control - Use +-3dB between 0to -40dB
Volume control of higher grade will be provided upon request
